Description

Reliable Multi-Lumen Access for Critical Care

Ortus Central Venous Catheters are engineered to provide dependable vascular access in intensive care and procedural settings. Available in single-, double-, and triple-lumen configurations, they support versatile administration of therapies—including high volume infusions, central venous pressure monitoring, and parenteral nutrition—while prioritising patient safety and procedural efficiency.

Key Features & Benefits

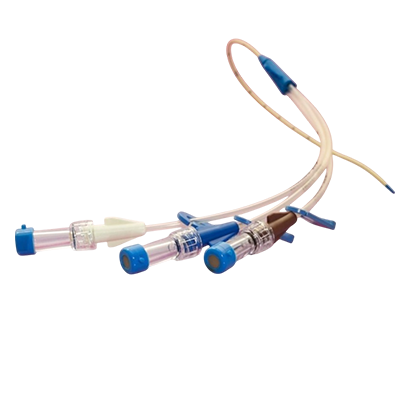

• Multi-Lumen Design (1–4 Lumens)
  Enables simultaneous infusion of incompatible medications, volume resuscitation, sampling and haemodynamic monitoring through separate channel.
• Medical-Grade Polyurethane Construction
  Smoothens at body temperature to conform to the vein, reducing irritation and trauma during indwelling.
• Clear Design and Markings
  Radiopaque catheter tubing ensures visibility under X-ray; depth markings assist with precise placement.

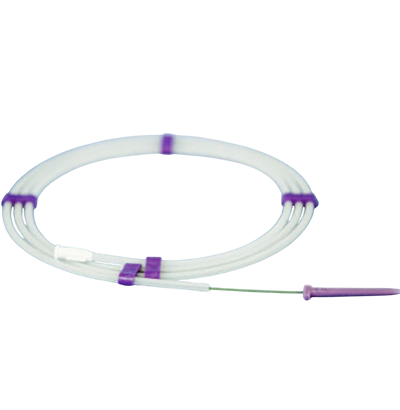

• Soft, Bevelled Tip and Flexible J-Tip Guidewire
  Minimises vascular injury on insertion and facilitates smooth vessel entry.
• Comprehensive Kit Inclusions
  Each sterile kit includes introducer needle, guidewire with nitinol core, dilator, Luer-lock caps, and fixation wings for safe and efficient insertion.
• Multiple Lengths & Diameter Options
  Catheter sizes available from 4 Fr to 8.5 Fr, with shaft lengths ranging from 5 cm up to 30 cm to suit adult and paediatric requirements.

Technical Specifications

• French Sizes Available: 4 Fr to 8.5 Fr (~18 G to 12 G)
• Effective Lengths: 5, 8, 10, 13, 16, 20 or 30 cm (size dependent)
• Dilator Sizes: Correspond to catheter size (e.g., 5.5 Fr, 6 Fr, 8 Fr)
• Guidewire: Flexible J-tip nitinol core, typically 0.018″ or 0.035″ depending on size
• Flow Rates: Up to 120 ml/min in 7 Fr catheters
• Priming Volume: Approximately 0.15–0.70 ml, lumen-dependent
• Sterility: Ethylene oxide (EO) sterilised, single-use sealed tray
• Certification: ISO-certified manufacture conforming to CE marking standards

Accurate Access. Advanced Safety.

Ortus Central Venous Catheters blend precision engineering with clinical functionality—ensuring reliable access, fluid administration, and monitoring in critical care environments.

Explore our full CVC range or contact our clinical team for guidance on selecting the best catheter configuration for your facility.
