Description

Targeted Drug Delivery with Advanced Spiral Design

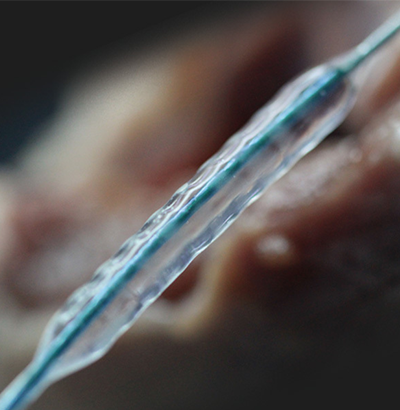

The Ortus Coronary Spiral Balloon Catheter, inspired by Vesspiral™ technology, is engineered to combine mechanical dilation with enhanced localised drug delivery. Its unique spiral groove structure and anti-slip design allow controlled expansion and improved therapeutic efficacy for complex coronary lesions. Ideal for drug-coated balloon (DCB) preparation and post-stenting optimisation.

Key Features

• Low-Profile Shaft Design
  Enables effortless lesion crossing, even in narrow or tortuous vessels.

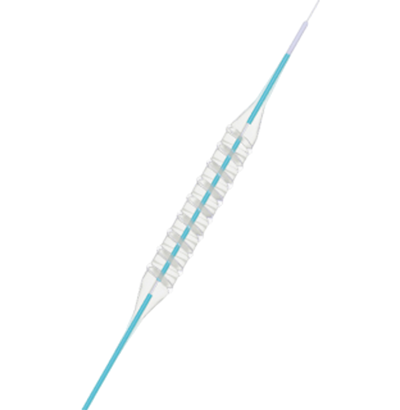

• Integrated Spiral and Anti-Slip Structure
  Promotes stable balloon positioning during inflation, preventing displacement and improving accuracy.
• Programmed Dilation Mechanism
  Allows controlled, gradual inflation for safer lesion dilation and reduced dissection risk.
• Optimised Drug Delivery Platform
  The spiral surface enhances contact with the vessel wall, increasing drug transfer efficiency and retention.
• Dual Radiopaque Markers
  Provide precise fluoroscopic visibility at balloon shoulders for accurate lesion targeting.
• Soft, Tapered Tip
  Atraumatic tip supports smooth trackability through stenotic or calcified segments.

Technical Specifications

• Balloon Diameter Range: 2.0 mm – 4.0 mm
• Balloon Lengths Available: 10 mm – 30 mm
• Rated Burst Pressure (RBP): Up to 16 atm
• Nominal Pressure (NP): 6 atm
• Catheter Length: 1400 mm
• Guidewire Compatibility: 0.014” (0.36 mm)
• Shaft Type: Rapid exchange (RX)
• Marker Bands: 2 radiopaque markers
• Tip Profile: Soft and tapered for enhanced deliverability
• Usage: Sterile, single-use only
• Compliance: ISO-certified, CE marked

Why Choose Ortus Spiral Balloon Catheters?

• Innovative spiral structure designed for precise drug absorption
• Trusted in challenging coronary anatomies
• Quick inflation and optimal deliverability
• Supported by regulatory compliance and clinical expertise

Innovation in Form. Impact in Therapy.

The Ortus Coronary Spiral Balloon Catheter delivers precise mechanical expansion while maximising local drug transfer—bridging the gap between structure and therapy. Trusted by interventional cardiologists seeking reliable outcomes in high-risk coronary procedures.

Explore our full range of specialty coronary catheters or contact our team for clinical support and product selection guidance.
